We are professional in making kinds of auto parts mould. Such as car radiator water tank mould, fan and fan shroud mould, auto interior part mould, grille mould, ,fender mould, car light mould, car rear view mirror etc.
| Quantity: | |
|---|---|
| Quick Details |
Place of Origin | Zhejiang, China (Mainland) |
Model Number | Customized |
Shaping Mode | Plastic Injection Mould |
Product Material | Steel |

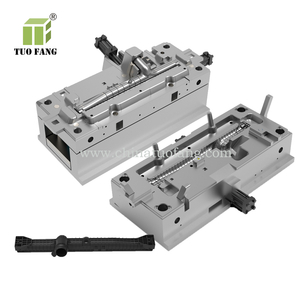

Product Name | Heavy duty truck radiator tank mould |
Mould material | P20 |
Mould life | 300000-500000shots |
Mould base | C45 |
Design software | UG |
Cavity | 1 |
Surface treatment | Polishing |
Runner | Hot Runner |
Supply Ability | 30 Set/Sets per Quarter |
Packaging Details | Wooden case |
Port | Ningbo |
Lead Time | 70days |
| The main Mold Steel and Hardness for you reference: |
Steel Grade | S50C | P20 | P20H | 718H | 2738H | 2316 | H13 | S136 | NAK80 |
Hardness(HRC) | 17-22 | 27-30 | 33-37 | 32-36 | 34-38 | 46-52 | 45-52 | 48-52 | 34-40 |
| Main processing: |
CNC, wire cutting, Grinding machine, Lathe, Drill Press, EDM center
| Manufacturing flow of mould: |
1 | RFQ | Get the sample or drawing from customer, analyze and quote as per customer requests, give some professional suggestions to help customer improve the product |
2 | Negotiation | Discuss about the mould steel, delivery time, payment term and so on |
3 | Place an order | Customer confirms the plastic material, injection machine spec and other details, we start make the design |
4 | Mould design | Make the mould design on the basis of confirmed product design, accordingly customer machine spec and other requests. |
5 | Mould tooling | Start the mould tooling after mould design confirmed.(Cut steel, CNC machining, polishing, testing.) |
6 | Mould processing | Mould process photo or video update to customer each 10 days |
7 | Test sample | T1: checking if mould working corrects, if the dimension, weight, wall thickness meet customer request. If everything ok, send the sample to customer approve |
8 | Delivery | Once sample approved, will ship the moulds within 7 days after get customer ship |
9 | Shipping | By Sea- Nearest port: Ningbo or Shanghai, By Air- Nearest port: Shanghai or Hangzhou |
| Mould Show |
| Mould maintenance |
a)When the mould is vacant, spray the anti-rust oil
b)To clean the gate and cooling system regularly
c)Avoid to use recycled material if the mould is suitable for virgin material only
Shipping Prepare |
1.Check mould component
2.Cleaning mould cavity/core and spread slushing oil on the mould
3.Cleaning mould surface and spread slushing oil on the mould surface
4.Put into the wooden case
5.Transport by container
![SP]](http://imrorwxhnqlolo5p-static.micyjz.com/cloud/lrBpqKrolnSRlkmqjjjpjp/202003231030006002995.jpg)
| Our Service |
1.Provide OEM/ODM service
2.Provide professional plastic mould design and manufacturing serivce
3.Provide plastic parts moulding/ printing/ painting service
4.Provide plastic parts assembly service
5.Provide plastic parts package service
6.Provide After-Sales service
About us |
Our company has set its strategic objective which is “high standard, high precision, high efficiency” by taking quality as life. Based on the working-style of “Honesty and Practicality, Persevering Unremittingly, Teamwork Spirit, Achieving Greatness”, our company would like to sincerely invite the global prospective customers to pay a visit and have a good cooperation for a splendid future together.
How can we contact you ? |
 |  |  |
Tom Yang Director | Phoebe Peng Sales Director | Emma Zhang Foreign Trade Manager |
Mobile: 86 13566821689 Mail: tom@chinatuofang.com | 861375766962 | 86 15215817209 |
